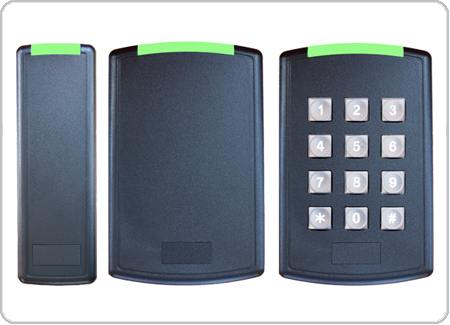

Ethos Advanced Access Readers (Bluetooth / Prox)

The Ethos® Line of Multi-Technology Contactless Access Readers offer modern aesthetic and a state of the art feature set. By providing a choice of credential technologies that includes standard Proximity (125 kHz), Smart (13.56 MHz) and Bluetooth, customers have the ability to set their own migration path to secure credentials. With both Wiegand and Serial versions the Ethos reader line is capable of working with a wide variety of legacy access control panels.

  • “Foolproof” Accelerometer-Based Tamper Detection
  • Patent Pending Metal Wall-Plate Mounting Scheme: The mounting plates act as a shield to ensure that credentials on the secure side of the door are not read as well as provides consistent read range regardless of the reader mounting surface
  • Tristate LED light bar (red, green, amber) and Buzzer.
  • Environment Flexibility: Accommodate indoor, outdoor, and various other installation environments
  • Easy Installation: Our easy to use bracket and wiring system awill help installation go smoothly

Technologies Supported:

  • Bluetooth (Mobile Devices)
  • Proximity (125 kHz)
  • Smart Card (13.56 MHz)
  • Mifare® Classic
  • Mifare® Plus
  • Ultralight
  • DESFire EV1
  • DESFire EV2

Ethos Readers pdf
Ethos PIV Readers pdf
Smart Credentials pdf
MyPass Mobile Credentials pdf
USB Enrollment Reader pdf
Single Door Module w/Fault Tolerant Architecture pdf


iCLASS® R10, R15, R30, R40 Readers

The iCLASS® R10, R15, R30 and R40 are 13.56 MHz contactless smart card readers feature plug-n-play setup for new and existing access control systems. These readers make access control more powerful, more versatile and offer enhanced security through data encryption and mutual authentication between the card and reader. iCLASS readers are user-friendly, delivering the same convenience and reliability of HID’s world-renowned Prox technology, with state-of-the-art features, driven by evolving industry requirements. Upgrading from Prox to iCLASS technology has never been so simple. All iCLASS readers provide the same wiring connections, low-current consumption and 5 to 16 volt operation. Additionally, you can transfer your Prox format and user identification numbers to iCLASS credentials, making the change completely transparent to your access control system.

  • Format Portability – Upgrading is completely transparent since the same Prox format and user identification numbers are brought across to your future iCLASS credentials, including HID Corporate 1000 formats.
  • Secure -All RF data transmission between the card and reader is encrypted using secure algorithms. Additionally, security can be extended from the reader all the way to the Hi-O enabled access control panel using encrypted Hi-O communication (Hi-O hardware option).
  • Interoperability – iCLASS is based on international ISO interoperability standards providing compatibility with many popular card technologies (ISO15693, ISO14443A and ISO14443B).
  • Security 64-bit authentication keys are extremely secure. Readers and cards require matching keys to function.
  • Key management is made easy! All cards are shipped with unique diversified keys, and readers are shipped with compatible keys.
  • Elite Custom Keys Custom keys provide the highest level of security, where cards and readers are uniquely matched to individual sites or customers, and are non-interchangeable.

PCSC IR or HID “R” Series iCLASS Reader Data Sheet pdf

Ranger® Long-Range Receivers & Transmitters

Ranger Receivers and Transmitters are the ideal long-range radio frequency identification (RFID) solution. This solution operates at the globally harmonized frequency of 433-MHz and offers exceptionally long transmission ranges of up to 200 ft (61 m). Users find Ranger to be ideal for a host of electronic access control applications, such as parking gates, vehicle barriers, and sliding doors. Additionally, each Ranger Transmitter may also be used as a traditional, presentation-style access control credential—just like a standard access card.

  • Exceptionally long read range—up to 200 ft (61m)
  • Ideal for parking facilities, gated communities, marinas and more
  • Supports industry standard electronic access control interfaces
  • Innovative security features such as MAXSecure™ (no HomeLink® support)
  • Transmitters can be used as both a long-range and standard access credential

RER-11 pdfWRR-22 pdf

P-620 Denali Mullion-Mount Reader & Keypad

The Pyramid Series Proximity® is based upon proven contactless digital radio frequency identification (RFID) technology, Pyramid readers interface with a wide range of electronic access control systems by complying with the Wiegand communication protocol.

  • Dimensions: 1.78″W × 6.1″H × 0.91″D (45mm × 155mm × 23mm)
  • Non-mechanical keypads minimize wear and tear
  • Easy-to-read blue backlighting
  • Four-state LED standard (red, green, amber, and off)
  • Single-piece design for indoor / outdoor use
  • 26-bit standard and custom Wiegand formats
  • Backed by Farpointe’s lifetime warranty
  • Technologies Supported*: Pyramid Series Proximity®, Certain HID® 125-kHz Proximity, Certain AWID® 125-kHz Proximity *Refer to data / spec sheet

P-620 Reader & Keypad pdf

P-640 Patagonia Proximity Reader & Keypad

The Pyramid Series Proximity® is based upon proven contactless digital radio frequency identification (RFID) technology, Pyramid readers interface with a wide range of electronic access control systems by complying with the Wiegand communication protocol.

  • Dimensions: 3″W × 4.6″H × 0.75″D (76mm × 117mm × 19mm)
  • Non-mechanical keypads minimize wear and tear
  • Easy-to-read blue backlighting
  • Four-state LED standard (red, green, amber, and off)
  • Single-piece design for indoor / outdoor use
  • 26-bit standard and custom Wiegand formats
  • Backed by Farpointe’s lifetime warranty
  • Technologies Supported*: Pyramid Series Proximity®, Certain HID® 125-kHz Proximity, Certain AWID® 125-kHz Proximity *Refer to data / spec sheet

P-640 Reader & Keypad pdf

P-300 Cascade Proximity Reader

The Pyramid Series Proximity® is based upon proven contactless digital radio frequency identification (RFID) technology, Pyramid readers interface with a wide range of electronic access control systems by complying with the Wiegand communication protocol.

  • Dimensions: 1.7″W × 3.2″H × 0.7″D (43mm × 81mm × 18mm)
  • Technology: Proximity
  • Frequency: 125 kHz
  • Read Range: Up to 5 inches (126 mm)
  • Mounting: Mullions, including metal door, window frames, flat surfaces
  • Interface: Wiegand ABA Track II
  • Four-state LED standard (red, green, amber, and off)
  • Indoor / Outdoor use
  • Backed by Farpointe’s limited lifetime warranty
  • Technologies Supported: Pyramid Series Proximity®, as well as certain AWID® and HID® 125kHz Proximity Protocols

P-300 Proximity Reader pdf

P-500 Alps Proximity Reader

The Pyramid Series Proximity® is based upon proven contactless digital radio frequency identification (RFID) technology, Pyramid readers interface with a wide range of electronic access control systems by complying with the Wiegand communication protocol.

  • Dimensions: 3″W × 4.6″H × 0.4″D (76mm × 117mm × 10mm)
  • Technology: Proximity
  • Frequency: 125 kHz
  • Read Range: Up to 8 inches (202 mm)
  • Mounting: Metal or plastic US single-gang wall box, flat surfaces
  • Interface: Wiegand ABA Track II
  • Four-state LED standard (red, green, amber, and off)
  • Backed by Farpointe’s limited lifetime warranty
  • Indoor / Outdoor use
  • Technologies Supported: Pyramid Series Proximity®, as well as certain AWID® and HID® 125kHz Proximity Protocols

P-500 Proximity Reader pdf

P-530 Euromount Proximity Reader

The Pyramid Series Proximity® is based upon proven contactless digital radio frequency identification (RFID) technology, Pyramid readers interface with a wide range of electronic access control systems by complying with the Wiegand communication protocol.

  • Dimensions: 3.25″W × 3.25″H × 0.8″D (82.5mm × 82.5mm × 20mm)
  • Technology: Proximity
  • Frequency: 125 kHz
  • Read Range: Up to 5 inches (126 mm)
  • Mounting: Metal or plastic European / Asian wall box, flat surfaces
  • Interface: Wiegand ABA Track II
  • Four-state LED standard (red, green, amber, and off)
  • Backed by Farpointe’s limited lifetime warranty
  • Indoor / Outdoor use
  • Technologies Supported: Pyramid Series Proximity®, as well as certain AWID® and HID® 125kHz Proximity Protocols

P-530 Euromount Proximity Reader pdf

PR233 MiniProx Mullion Reader

The MiniProx® proximity card reader’s potted electronics enhance the security of the reader. The slim, attractive design is ideal for indoor or outdoor mounting.

  • Accepts 5 to 16 volts, meeting most voltage requirements
  • Available with Wiegand or Clock-and-data interface
  • Allows easy upgrade from magstripe to a proximity reader; no rewiring or pulling of new cable required
  • Offers high reliability, consistent read-range and low power consumption in an easy-to-install package
  • Mounts directly onto metal with no change in read range performance
  • Provides multicolor LED, compatibility with all standard access control systems and internal or host control of LED and beeper
  • Includes multilingual installation manual

PR233 MiniProx Mullion Reader pdf

PR234 ProxPro® Reader

The ProxPro® proximity card reader’s weatherproof design and architecturally attractive enclosure allows easy mounting indoors or out. The ProxPro Reader is ideal for applications requiring a larger read range.

  • Affords high reliability, consistent read range characteristics and low power consumption in a single, easy-to-install package
  • Features multicolor LED, internal or host control of the LED and/or beeper and a beeper “off” switch for silent operation
  • Provides Wiegand protocol interface compatibility with all standard access control systems
  • Offers an optional, fully integrated personal identification number keypad for heightened security

PR234 ProxPro Reader pdf

PR238 ProxPoint Reader

The ProxPoint® Plus reader combines multiple configuration options with an attractive, inconspicuous design and economical price. Its secure potted electronics are ideal for both indoor and outdoor applications.

  • Small sized, low cost reader features a beeper and multicolor LED which can be host and/or locally controlled
  • Potted reader suitable for indoor or outdoor use
  • 18″ (45 cm) wire pigtail standard; consult factory for 9′ (2.7 m) pigtail available by special order
  • Classic Series covers available in black, gray, white or beige. Designer Series covers available in black or gray

PR238 ProxPoint Reader pdf

PRK234 ProxPro with Keypad

The ProxPro® proximity card reader’s weatherproof design and architecturally attractive enclosure allows easy mounting indoors or out. The ProxPro Reader is ideal for applications requiring a larger read range.

  • Ideal for medium-range applications
  • Available with Wiegand, Serial (RS-232/RS-422) or Clock-and-Data interface
  • Sealed for indoor or outdoor use
  • Optional glass mount kit available for mounting the reader behind glass
  • Available in gray or beige
  • Keypad data and card data can be sent on the same cable, or on a separate cable using 2 of 7 or 3 x 4 matrix

PRK234 ProxPro with Keypad pdf

PR235 MaxiProx – 125 kHz Long Range Proximity

The MaxiProx® Reader is ideal for installations incorporating parking control and long read range applications. The MaxiProx reader packages all the electronics in one rugged, attractive and easy-to-install housing.

  • Long read range distance (up to 6′ with ProxPass)
  • Autotune allows read range to be maintained within four inches of metal
  • Wiegand, Clock-and-Data, RS-232, RS-422, and RS-485 output modes are configurable
  • “Parking hold” feature ensures accurate detection of vehicles in parking lanes
  • Power requirements: 12 or 24 VDC (configurable)
  • Current requirements: 200mA avg / 700 mA peak at 12VDC; 260mA avg / 1.2A peak at 24 VDC
  • Dimensions: 12.0″ x 12.0″ x 1.0″ (30.5 x 30.5 x 2.54 cm)

PR235 MaxiProx Long Range Proximity pdf

PR236 Thin-Line

Providing performance and reliability, the unobtrusive ThinLine® II proximity card reader is housed in a two-piece, weatherproof secure potted enclosure.

  • The size of most standard U.S. switch plates
  • Available with Wiegand or Clock-and-Data interface
  • Potted reader suitable for indoor or outdoor use
  • Base part numbers: 5395 (Wiegand), 5398 (Clock-and-Data)
  • 18″ (45 cm) wire pigtail standard; consult factory for 9′ (2.7 m) pigtail available by special order

PR236 Thin-Line pdf

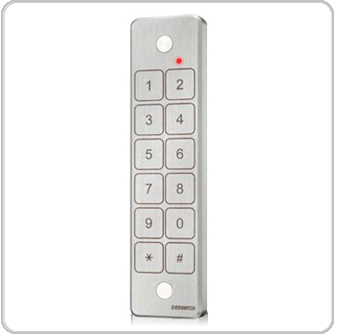

2 x 6 Stand Alone Single Door Keypad

The 2 x 6 Stand Alone Single Door keypad (PCSC model# SSK973) is a self-contained access point utilizing an innovative patented Piezo technology. These keypad’s are rugged, sealed, tamper, vandal and weather proof. Their non-moving, one-piece construction sets them apart from any alternative. A similar non-stand-alone version of this keypad (PCSC model# BP973) utilizing Wiegand communications is also available for use with all PCSC IQ Series, SIM Series, ULT Series and FT Series. Contact a PCSC Representative for complete details.

  • Brushed Aluminum
  • Up to 200 User Codes – 100 million combinations, 4 – 8 Digits
  • Visual & Audible Feedback
  • Slim Form Factor, Dimensions: 44.5 mm x 180 mm
  • Prox Power Supply: 12 to 24 VDC
  • Power Consumption: Max 150mA
  • Operation Temperature: -20 to 75 °C
  • Vandal Proof
  • Tamper Proof
  • Weather Proof
  • Water and Dust Proof IP68

2 x 6 Stand Alone Single Door Keypad pdf

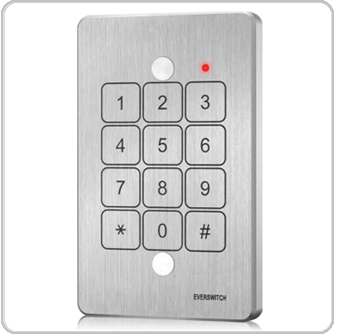

3 x 4 Stand Alone Single Door Keypad

The 3 x 4 Stand Alone Single Door keypad (PCSC model# SSK974) is a self-contained access point utilizing an innovative patented Piezo technology. These keypad’s are rugged, sealed, tamper, vandal and weather proof. Their non-moving, one-piece construction sets them apart from any alternative. A similar non-stand-alone version of this keypad (PCSC model# BP974) utilizing Wiegand communications is also available for use with all PCSC IQ Series, SIM Series, ULT Series and FT Series. Contact a PCSC Representative for complete details.

  • Brushed Aluminum
  • Up to 200 User Codes – 100 million combinations, 4 – 8 Digits
  • Visual & Audible Feedback
  • Dimensions: 81 mm x 130 mm
  • Prox Power Supply: 12 to 24 VDC
  • Power Consumption: Max 150mA
  • Operation Temperature: -40 to 125 °C
  • Vandal Proof
  • Tamper Proof
  • Weather Proof
  • Water and Dust Proof IP68

3 x 4 Stand Alone Single Door Keypad pdf

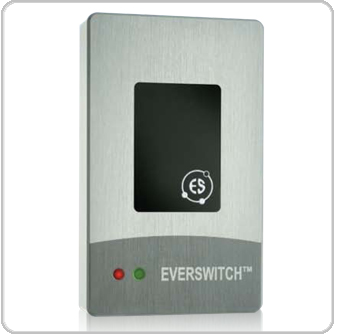

Anti-vandal Proximity Reader

The Everswitch anti-vandal 125 KHz HID proximity reader provides the ultimate solution for users operating in harsh environment, high traffic areas. Easily interfaced: Wiegand output model interfaces with all existing Wiegand protocol access control systems. Indoor/Outdoor design: Sealed in a rugged, weatherized Aluminum enclosure these readers are designed to withstand harsh environments, providing reliable performance while being both vandal and tamper proof.

  • Brushed Aluminum
  • Output / Data Formats: Wiegand Depending on Card
  • Communications: Wiegand
  • Prox Power Supply: 8 to 15 VDC
  • Power Consumption: Max 150mA
  • Operation Temperature: -20 to 75 °C
  • Vandal Proof
  • Tamper Proof
  • Weather Proof
  • Water and Dust Proof IP68

Everswitch Anti-vandal Proximity Reader pdf

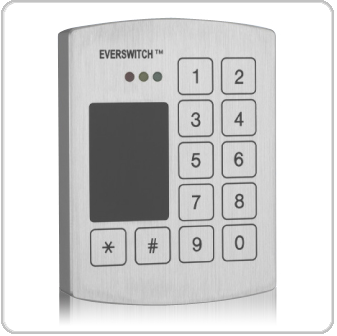

Anti-vandal Keypad with Proximity Reader

The Everswitch Piezo keypad combined with 125 KHz HID proximity reader provides the ultimate solution for users operating in harsh environment, high traffic areas or when weatherized door units are needed. Audiovisual indication: when a PIN is presented to the door unit, the LED flashes and the buzzer sounds. Indoor/Outdoor design: Sealed in a rugged, weatherized Aluminum enclosure these readers are designed to withstand harsh environments, providing reliable performance while being both vandal and tamper proof. Easily interfaced: Wiegand output model interfaces with all existing Wiegand protocol access control systems.

  • Brushed Aluminum
  • Output / Data Formats: Wiegand Depending on Card
  • Communications: Wiegand
  • Prox Power Supply: 8 to 15 VDC
  • Power Consumption: Max 150mA
  • Transmitter/Receiver Frequency: 125 KHz HID Card/Tag Reader
  • Operating Temperature Keypad: -40 to 125 °C
  • Operating Temperature Reader: -30 to 65 °C (22° F to 150° F)
  • Vandal Proof
  • Tamper Proof
  • Weather Proof
  • Water and Dust Proof IP68, 100% Humidity

Everswitch Anti-vandal Keypad with Proximity Reader pdf

.

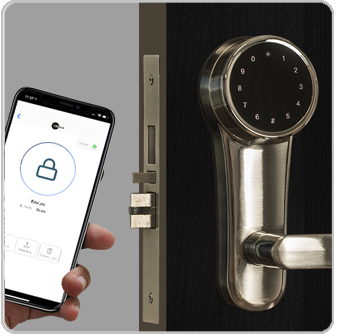

MLock-M Intelligent Mortise Door Lock

Beyond the stylish look, the new MLock-M is the ideal choice for modern commercial applications. Whether the situation is a new install, existing upgrade or retrofit application, the MLock-M is the ultimate self contained door access solution. Utilizing the latest in mobile technology with cloud-based administration, the MLock-M is easily setup, installed and managed Online. User’s benefit from a myriad of access types and ease-of-use.

A mobile based credential App puts access at your fingertips using Bluetooth Low Energy (BLE). For users who prefer physical cards, the MLock is fully compatible with the latest Mifare (13.56 MHz) contactless cards. Excellent for a combination of physical and mobile card environment. The all-in-one touch activated smart keypad and reader has numerous functions including PIN code access, group settings and further administration. A swivel of the keypad reveals access to a concealed mechanical key override.

Standalone, and self contained with a 10 month battery life while BLE is enabled and up to 2 years without BLE. The MLock has no compromises in craftsmanship, quality or fit and is UL, CE, BHMA Certified and US ANSI Grade 1. Available in several customized colors.

  • Multiple Access Types: Mobile Bluetooth, Mifare Card (13.56 MHz), Keypad PIN and Mechanical Key Override
  • Credential management using mobile App and Cloud-based administration via SafeTrust
  • iOS and Android Compatible
  • Wireless, standalone, self contained, 10 month battery life with BLE enabled and up to 2 years without BLE
  • Acrylic Touch Activated Screen with Multi Function Keypad, including scramble code
  • Guest Mode
  • Low Battery Warning
  • UL, CE, BHMA, US ANSI Grade 1
  • Ideal for Commercial Applications

Contact PCSC for pricing and availability.
MLock-M Intelligent Mortise Door Lock pdf

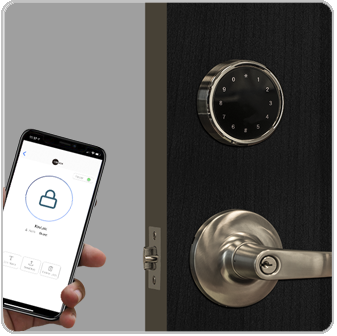

MLock-C Intelligent Cylindrical Door Lock

Beyond the stylish look, the new MLock-C is the ideal choice for modern commercial applications. Whether the situation is a new install, existing upgrade or retrofit application, the MLock-C is the ultimate self contained door access solution. Utilizing the latest in mobile technology with cloud-based administration, the MLock-C is easily setup, installed and managed Online. User’s benefit from a myriad of access types and ease-of-use.

A mobile based credential App puts access at your fingertips using Bluetooth Low Energy (BLE). For users who prefer physical cards, the MLock is fully compatible with the latest Mifare (13.56 MHz) contactless cards. Excellent for a combination of physical and mobile card environment. The all-in-one touch activated smart keypad and reader has numerous functions including PIN code access, group settings and further administration.

Standalone, and self contained with a 10 month battery life while BLE is enabled and up to 2 years without BLE. The MLock has no compromises in craftsmanship, quality or fit and is UL, CE, BHMA Certified and US ANSI Grade 1. Available in several customized colors.

  • Multiple Access Types: Mobile Bluetooth, Mifare Card (13.56 MHz), Keypad PIN and Mechanical Key Override
  • Credential management using mobile App and Cloud-based administration via SafeTrust
  • iOS and Android Compatible
  • Wireless, standalone, self contained, 10 month battery life with BLE enabled and up to 2 years without BLE
  • Acrylic Touch Activated Screen with Multi Function Keypad, including scramble code
  • Guest Mode
  • Low Battery Warning
  • UL, CE, BHMA, US ANSI Grade 1
  • Ideal for Commercial Applications

Contact PCSC for pricing and availability.
MLock-C Intelligent Cylindrical Door Lock pdf

MLock-D Intelligent Deadbolt Door Lock

Beyond the stylish look, the new MLock-D is the ideal choice for modern commercial applications. Whether the situation is a new install, existing upgrade or retrofit application, the MLock-D is the ultimate self contained door access solution. Utilizing the latest in mobile technology with cloud-based administration, the MLock is easily setup, installed and managed Online. User’s benefit from a myriad of access types and ease-of-use.

A mobile based credential App puts access at your fingertips using Bluetooth Low Energy (BLE). For users who prefer physical cards, the MLock-D is fully compatible with the latest Mifare (13.56 MHz) contactless cards. Excellent for a combination of physical and mobile card environment.

Standalone, and self contained with a 1 year battery life while BLE is enabled and up to 2 years without BLE. The MLock has no compromises in craftsmanship, quality or fit and is UL, CE, BHMA Certified and US ANSI Grade 1. Available in several customized colors.

  • Multiple Access Types: Mobile Bluetooth, Mifare Card (13.56 MHz), Keypad PIN and Mechanical Key Override
  • Credential management using mobile App and Cloud-based administration via SafeTrust
  • iOS and Android Compatible
  • Wireless, standalone, self contained, up to 12 months battery life with BLE enabled and up to 18 months without BLE
  • Guest Mode
  • Built-in Self Test
  • Low Battery Warning
  • Anti-Theft System
  • UL, CE, BHMA, US ANSI Grade 1
  • Ideal for Commercial Applications

Contact PCSC for pricing and availability.
MLock-D Intelligent Deadbolt Door Lock pdf
